Name: Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: سری XL-2XL
Price: 33,850.00 USD
Availability: InStock

خونه > محصولات > Micron Powder Grinding Machine >

Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing

High Capacity Double Spiral Sand Washer

Double Spiral Sand Washer

محل منبع:

چین

نام تجاری:

hengyang

گواهی:

ISO9001

شماره مدل:

سری XL-2XL

با ما تماس بگیرید

درخواست نقل قول

Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing

جزئیات محصول

ولتاژ:

220 ولت / 380 ولت، 220 ولت، 110/220 ولت، 380 ولت، سفارشی

گارانتی:

12 ماه

کارکرد:

شستشوی شن و ماسه

نوع:

شستشو

رنگ:

سفارشی کنید

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

12000-55700USD/set

جزئیات بسته بندی

نفی

زمان تحویل

15-20 روز

شرایط پرداخت

T/T

قابلیت ارائه

300 مجموعه در ماه

محصولات مرتبط

Nonmetal Rotary TROMMEL Screen for material separation processes

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

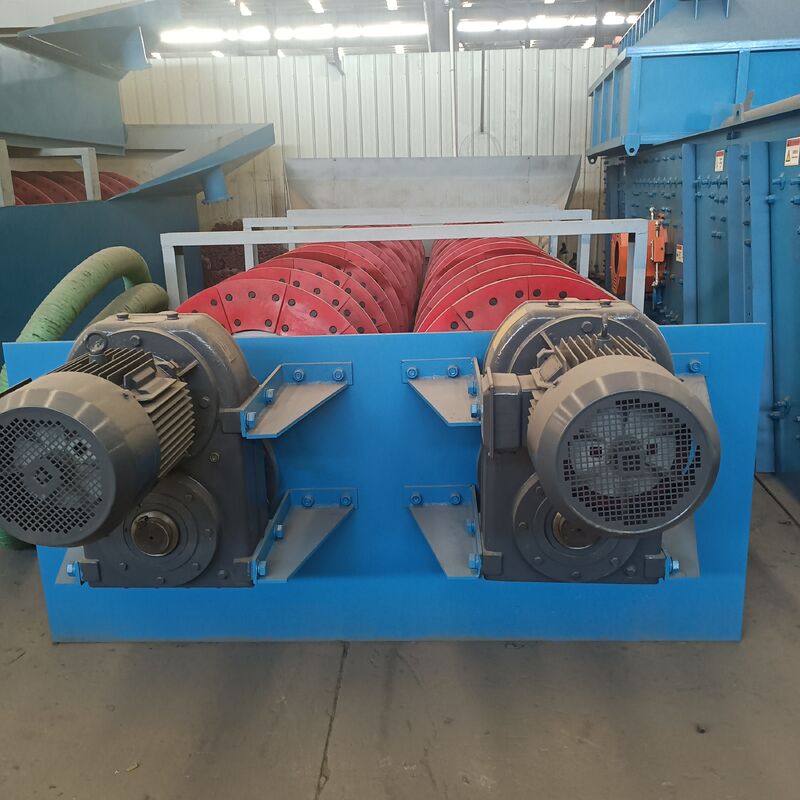

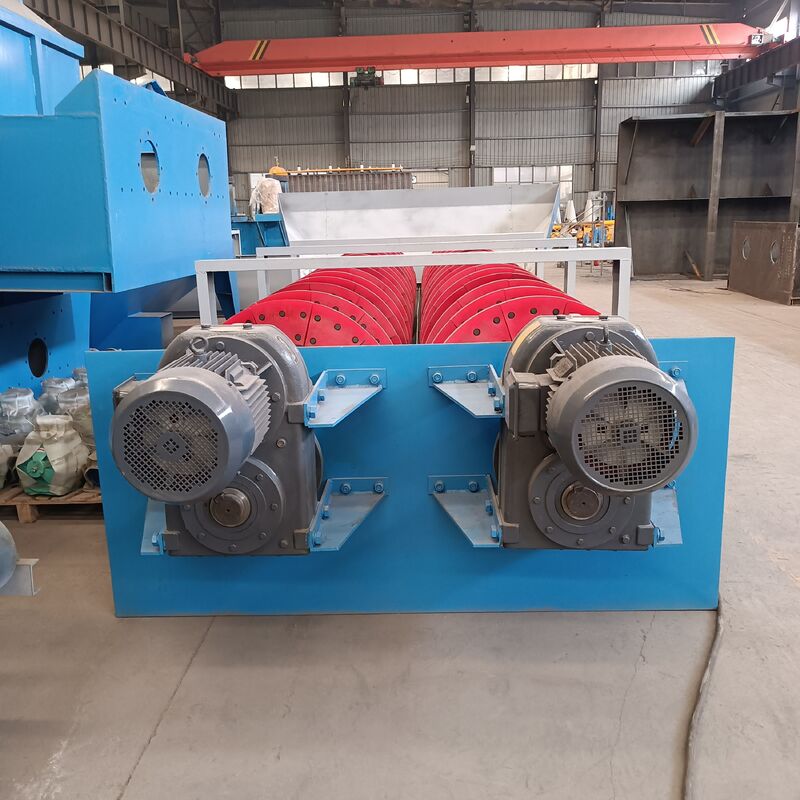

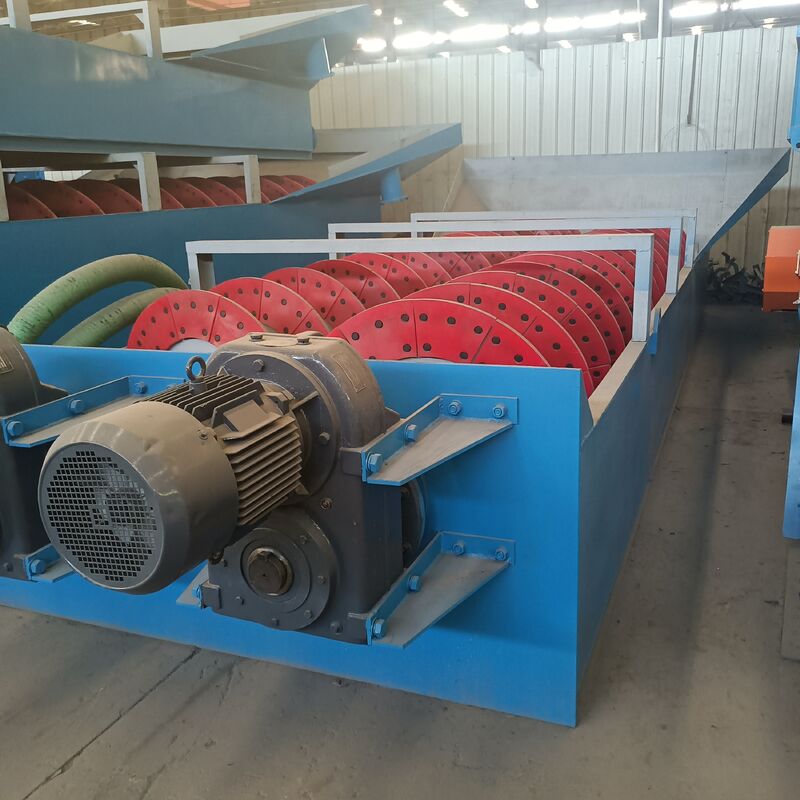

Double Spiral Sand & Gravel Washer

The spiral sand washer efficiently cleans sand and gravel through its spiral mechanism. The equipment stirs the material, mixing soil and water which is then discharged through designated outlets. Under the spiral's action, sand and gravel are gradually screened and discharged from the top outlet, achieving thorough cleaning.

Main Features

Double shaft design provides wider processing width compared to single-spiral models
Higher output capacity than single-spiral washers
Maintains excellent cleaning quality equivalent to single-spiral models
Strong cleaning capability with effective results
Ideal for processing sand and gravel with significant impurity content
Commonly deployed in large-scale sand production operations

Contact: +8615617816797

Technical Parameters

Model	XL508	XL610	XL762	XL915	2XL915	XL1115	2XL1115
Screw Diameter (mm)	508	610	762	915	915	1115	1115
Length of Tub (mm)	6705	7225	7620	7585	7585	9782	9782
Max Feed Size (mm)	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10
Capacity (t/h)	20	40-50	50-75	100	200	175	350
Speed of Screw (r/min)	38	32	26	21	21	17	17
Motor Power (kw)	5.5	7.5	11	11	2×11	15	2×15
Water Consumption (t/h)	6-60	6-63	9-63	10-80	20-160	20-150	40-300
Overall Dimensions (L×W×H mm)	8000×2343×1430	8000×2050×1400	8545×2650×3862	8500×2810×3600	8420×3765×3960	10970×3945×4720	10970×5250×4720
Weight (t)	2.67	3.80	5.23	6.27	11.11	10.18	17.94
