Name: Metal Rotary Drum Screen
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: سری TTS
Price: 33,850.00 USD
Availability: InStock

خونه > محصولات > Stone & Sand Washing Line >

Metal Rotary Drum Screen

Rotary Drum Screen

محل منبع:

چین

نام تجاری:

hengyang

گواهی:

ISO9001

شماره مدل:

سری TTS

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

رنگ:

سفارشی کنید

برنامه:

شستشو و جداسازی

مواد:

فولاد

ظرفیت:

50-400 تن در ساعت

OEM:

قبول کنید

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

12000-55700USD/set

جزئیات بسته بندی

نفی

زمان تحویل

15-20 روز

شرایط پرداخت

T/T

قابلیت ارائه

300 مجموعه در ماه

محصولات مرتبط

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

بهترین قیمت رو بدست بیار

Customize PU Spiral Sand Washing Machinery

بهترین قیمت رو بدست بیار

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

بهترین قیمت رو بدست بیار

Insutrial Use Rotary Screen Capacity 1-250t/h

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

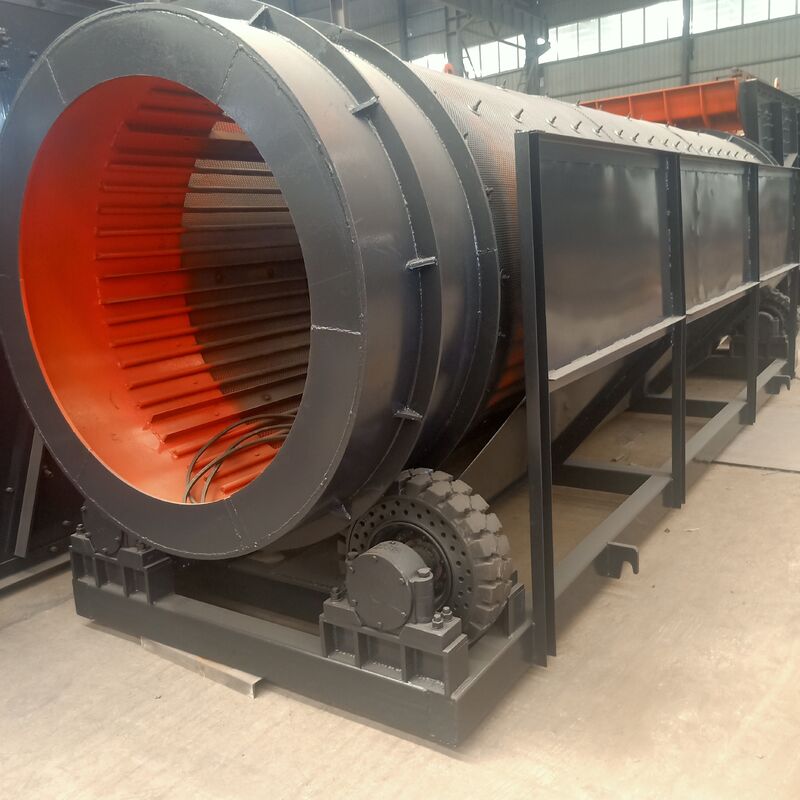

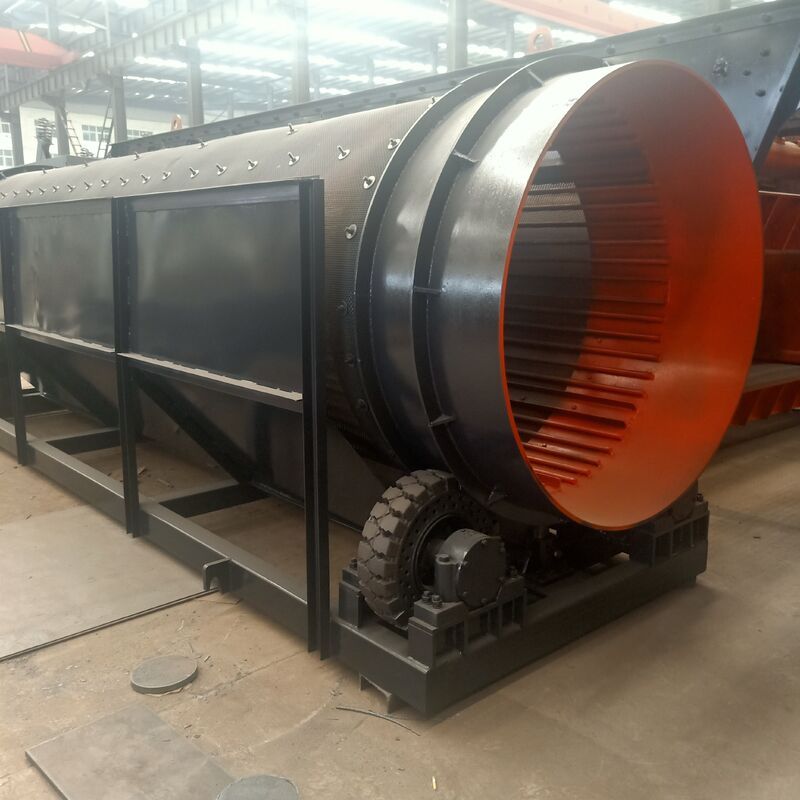

Metal Rotary Drum Screen widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Principle

• Mobile Gold Washing Machines are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
• Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
• After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.

Metal Rotary Drum Screen 0

Technical Details

Model	Length range (m)	Screen segments	Mesh range (mm)	Power (kw)	Degree of tilt	Max Size (mm)	Drum speed (r/min)	Handling capacity (m3/h)	Reference weight (kg)
YTS600	2~4	1~3	5~35	2.2~3	7°	35	20	10	1.6
YTS800	2~4	1~3	5~40	2.2~5.5	7°	45	18	14	2.4
YTS1000	2~6	1~4	5~45	3~7.5	7°	60	16	16	4.2
YTS1200	2~8	1~4	5~50	4~11	7°	70	15	20	5.8
YTS1500	2~8	1~4	5~55	4~15	7°	80	12	32	7.2
YTS2000	2~9	1~4	5~60	5.5~18.5	7°	90	8	45	11
