Name: Customize Industrial Processing EAF Dust from Wealz Kiln
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: Wealz KILN
Price: 65,350.00 USD
Availability: InStock

خونه > محصولات > EAF Dust Recycling >

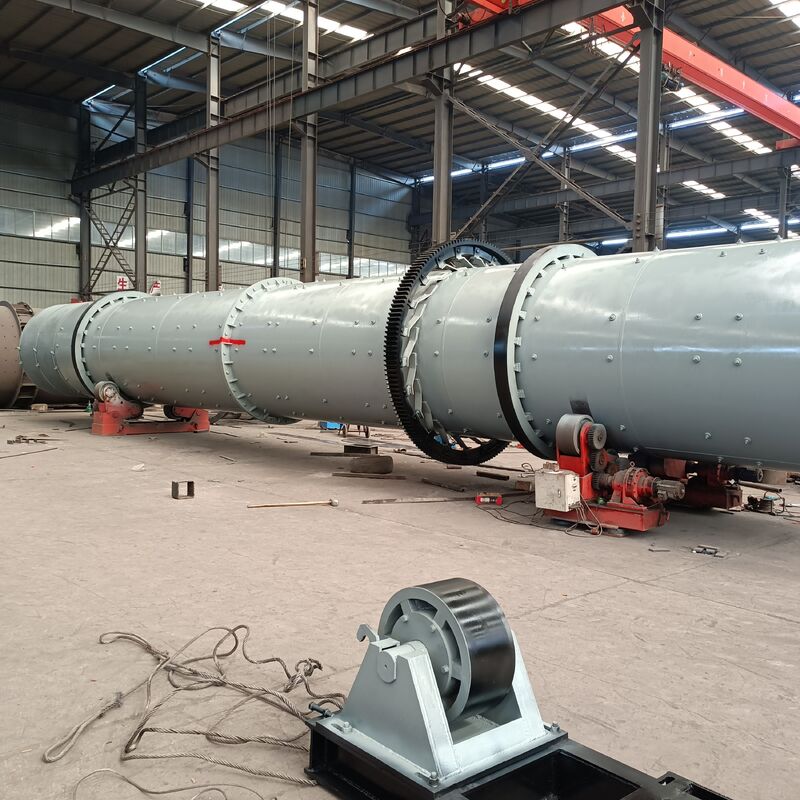

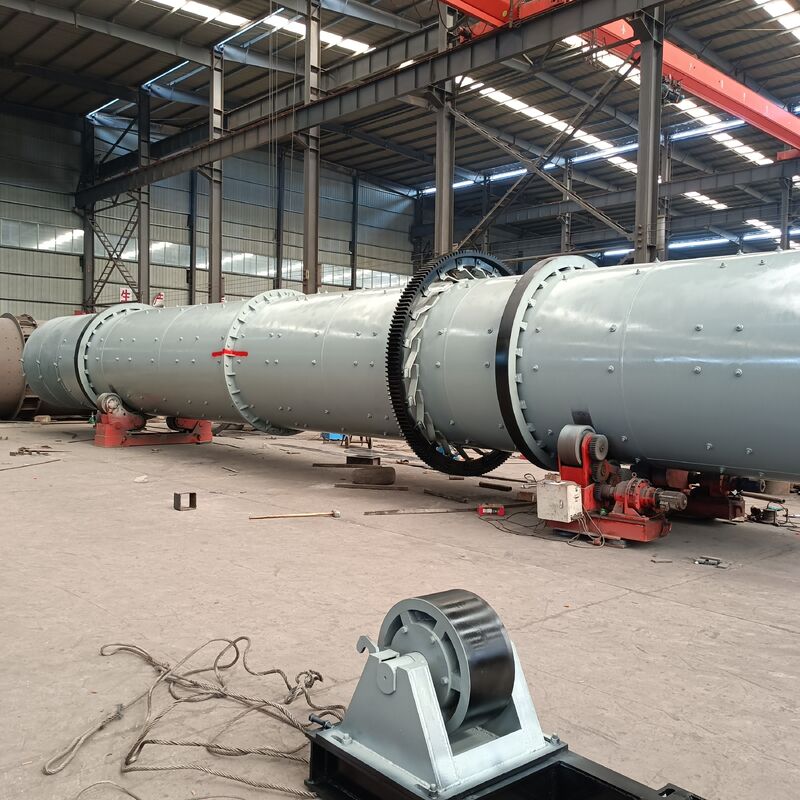

Customize Industrial Processing EAF Dust from Wealz Kiln

Wealz Kiln EAF Dust

EAF Dust Recycling Wealz Kiln

محل منبع:

چین

نام تجاری:

hengyang

گواهی:

ISO9001

شماره مدل:

Wealz KILN

مدرک:

Zinc Waste Recycling.pdf

با ما تماس بگیرید

درخواست نقل قول

Customize Industrial Processing EAF Dust from Wealz Kiln

جزئیات محصول

ظرفیت:

0.9-40 تن در ساعت

قدرت:

18.5-132 کیلووات

رنگ:

سفارشی کنید

OEM:

قبول کنید

EPC:

قبول کنید

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

قیمت

35000-95700USD/set

جزئیات بسته بندی

نفی

زمان تحویل

15-20 روز

شرایط پرداخت

T/T

قابلیت ارائه

30 ست در ماه

محصولات مرتبط

Acid Leaching in EAF Dust Recycling

بهترین قیمت رو بدست بیار

Waelz Kiln Technology of EAF Dust Extracting ZinO for Industrial Recycling Solutions

بهترین قیمت رو بدست بیار

Recycling Hazardous Waste Production Line for waste management solutions

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

The Waelz Kiln is the dominant technology accounting for 80% of total crude zinc oxides production worldwide from EAF dust sources. In the Waelz process EAF steel dust is mixed with solid reducing agent and lime or silica, pelletized and then it is fed to the kiln and heated to reaction temperature to volatilize the non-ferrous metals like zinc and lead, while ferrous oxides are also reduced. The main components of the Waelz oxides are volatilized oxides of non-ferrous metals (Zn,Pb, Cd, etc.) and also halogens (mainly chlorides), alkaline metals (Na, K), and some sulphur oxide.

Nowadays, the major part of Waelz oxide is used by primary zinc smelters to produce electrolytic zinc. Because halogens content in the Waelz oxide have a detrimental effect in zinc electro-winning, the zinc smelters normally request a concentration of each CI and F not higher than 0.1%which requires a washing step. Nonetheless, the ratio of washed crude zinc oxides blended with sulphide concentrates that can be fed to the roaster is usually not higher than 10%. The direct feeding of washed Waelz oxide to the leaching is hardly applied. Customize Industrial Processing EAF Dust from Wealz Kiln 0

Kiln Technical Details:

Specification Model (m)	The size of the kiln			Yield (t/h)	Speed (r/min)	Electrical power (kw)	Weight (t)	Remarks
Specification Model (m)	Diameter (m)	Length (m)	Gradient (%)	Yield (t/h)	Speed (r/min)	Electrical power (kw)	Weight (t)	Remarks
φ1.4×33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5	----
φ1.6×36	1.6	36	4	1.2-1.9	0.26-2.63	22	52	----
φ1.8×45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2	----
φ1.9×39	1.9	39	4	1.65-3	0.29-2.93	30	77.59	----
φ2.0×40	2	40	3	2.5-4	0.23-2.26	37	119.1	----
φ2.2×45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3	----
φ2.5×40	2.5	40	3.5	9.0-10.5	0.44-2.44	55	149.61	----
φ2.5×50	2.5	50	3	6.25-7.4	0.62-1.86	55	187.37	----
φ2.5×54	2.5	54	3.5	6.9-8.5	0.48-1.45	55	196.29	----
φ2.7×42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5	----
φ2.8×44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58	Preheater kiln
φ3.0×45	3	45	3.5	12.8-14.5	0.5-2.47	75	210.94	----
φ3.0×48	3	48	3.5	25.6-29.3	0.6-3.48	100	237
φ3.0×60	3	60	3.5	12.3-14.1	0.3-2	100	310	----
φ3.2×50	3.2	50	4	40.5-42	0.6-3	125	278
